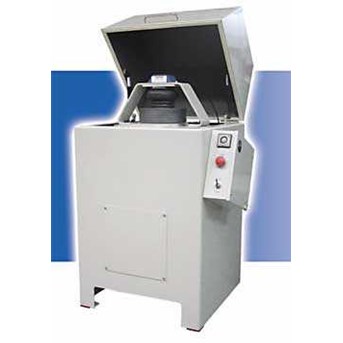

STANDARD RING MILL

Whisper Series Standard Ring Mills have been developed for pulverising 1-1000gram samples. It is used for pulverising rocks, soil, coal, cement, glass, limestone, bricks, wood, plant material, slags, concrete, etc… for subsequent analysis by instrumental methods or wet chemistry. The noise level is less than 85dB. It provides fast and dust free grinding, homogeneity grinding, very low contamination of samples, easy to clean, low capital cost, long life and maintenance free. Rocklabs offers two designs of clamp, manual rotoclamp or pneumatic clamp (compressed air required). Dimensions: Depth : 600mm Width : 840mm Height : 1200mm Weight : 200kg The Standard Ring Mill (Whisper series) comes complete with powder coated metal cabinet, soundproofi ng, timer starter and safety “cut out” switch. There are two options of clamps available. HEAD OPTIONS : A wide range of sample containers (Heads) is available for samples from 1 to 1000 grams. These are made from agate, carbon steel, chrome steel, sialon, tungsten carbide and zirconia. Shipping weight : 230kg CLAMPING OPTIONS : Pneumatic clamp Mechanical Rotoclamp USES Used for pulverising rocks, soil, coal, cement, glass, limestone, bricks, wood, plant material, slags, concrete, etc. for subsequent analysis by instrumental methods or wet chemistry. HEAD OPTIONS : A wide range of sample containers (Heads) is available for samples from 1 to 1000 grams. These are made from agate, carbon steel, chrome steel, sialon, tungsten carbide and zirconia. Shipping weight 230kg Height 1170 mm Width 600 mm Depth 600 mm The Pneumatic Bridge Airbag clamp mounted on a bolt-on steel bridge. The Rotoclamp Mechanical clamp mounted on a bolton steel bridge.
